Space Grade n256 Up-Link (S-band) n256-ANT-UL-VC
The n256-ANT-UL-VC is a patch antenna fed through vertically mounted SMA connector, ready to be installed to onto a single face of 1U CubeSat satellite. Ensuring full compatibility with the latest standards, the antenna operates within the 5G NTN S-band Up-Link (1980-2010 MHz), in full compliance with 3GPP Release 17/18 n256, as defined in 3GPP TR 38.741. The antenna is designed to work with circular polarization. The antenna is manufactured following ECSS guidelines and Certificate of Conformity is released within produced samples. The antenna has been characterized by TIM LAP Laboratory according to UNI 17025 standard. The antenna has 8 installation holes for allowing mounting by means of screws. The 3D models of the antenna can be provided on request. The antenna is delivered with Interface Control Document and Datasheet, together with the Certificate of Conformity

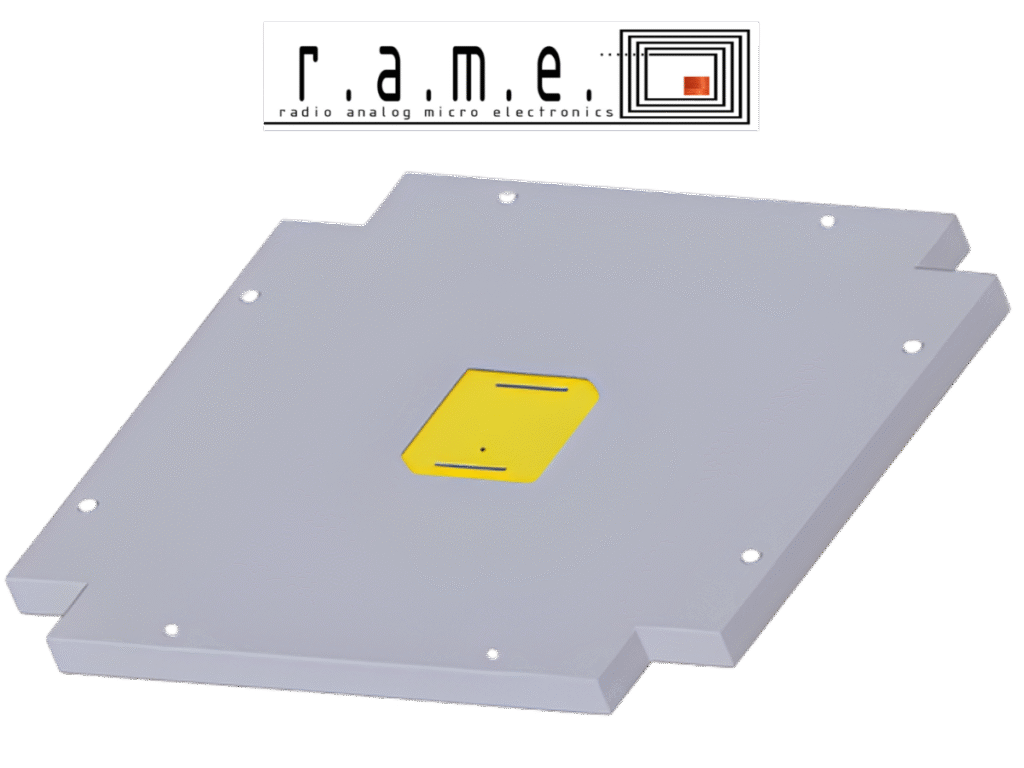

Figure: n256-ANT-UL-VC-RHCP antenna 3D model.
| Specifications | Value (nominal) | Unit |
| Center Frequency | 1995 | MHz |
| BW (Retrurn Loss < -10 dB) | 125 | MHz |
| Return Loss wrt 50 Ohm | < -10 | dB |
| Realized Gain | 5.7 | dBi |
| HPBW | > 85 | deg |
| Axial Ratio (between 1980MHz – 2010MHz) | <3 | dB |
| Dimensions (excluding connector) | 100(W) X 100(L) X 6.35(T) | mm |
| Weight | < 175 | g |
Figure: specifications for the n256-ANT-UL-VC antenna with circular polarization.
For any inquiry concerning pricing, lead time for delivery and any additional information contact us at info@ramesrl.it
All information, specifications, images and 3D models are ownership of Radio Analog Micro Electronics srl, any third party re-printing or re-publishing is not allowed without Radio Analog Micro Electronics srl consent.
